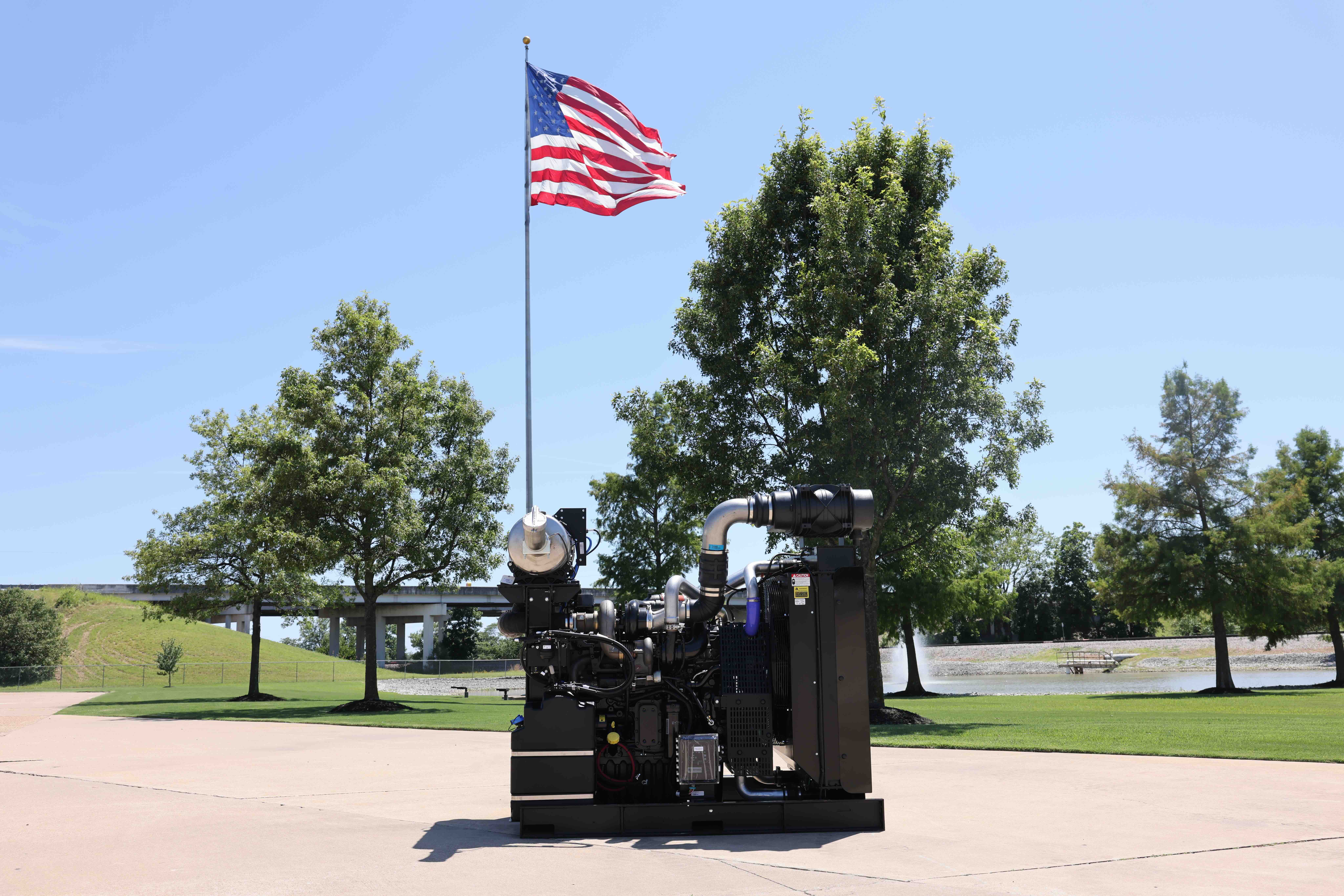

6136HI440

6136HI440

  • 6136HI440

  • 300-410 kW (402-550 hp)
  • Continuous

Specifications

Emissions Certifications

EPA Final Tier 4

General engine data

Model6136HI440
Number of cylinders6
Displacement-- L (cu in)13.6 (827)
Bore and Stroke-- mm (in)132 x 165 (5.2 x 6.5)
Compression Ratio15.9:1
Engine TypeIn-line, 6-cycle
AspirationTurbocharged
Length - mm (in)1498 (58)
Width-- mm (in)890 (35)
Height-- mm (in)1367 (54)
Weight, dry - kg (lb)1468 (3236)

Features

  • Wastegated turbochargers are designed to develop more airflow at lower engine speeds to improve low-speed torque. The wastegate control device bleeds off a portion of the exhaust flow at higher engine speeds. Wastegated turbos deliver improved transient response and higher peak torque without compromising engine envelope size. They also provide the lowest installed cost across a given power range.

  • EGR cools and mixes measured amounts of cooled exhaust gas with incoming fresh air to lower peak combustion temperatures, thereby reducing Nox.

  • John Deere engines feature an SCR system that utilizes a urea-based additive, sometimes referred to as diesel exhaust fluid (DEF) to meet Stage IV emission standards. A chemical reaction in the SCR catalyst converts urea and NOx emissions into nitrogen and water vapor.

  • The HPCR fuel system provides variable common-rail pressure and high injection pressures. It also controls fuel injection timing and provides precise control for the start, duration, and end of injection.

  • This is the most efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.

  • The 4-valve cylinder head provides excellent airflow resulting in excellent low-speed torque and transient response.

  • Lower installed cost

  • Faster engine control unit (ECU) manages both the engine and the exhaust filter
