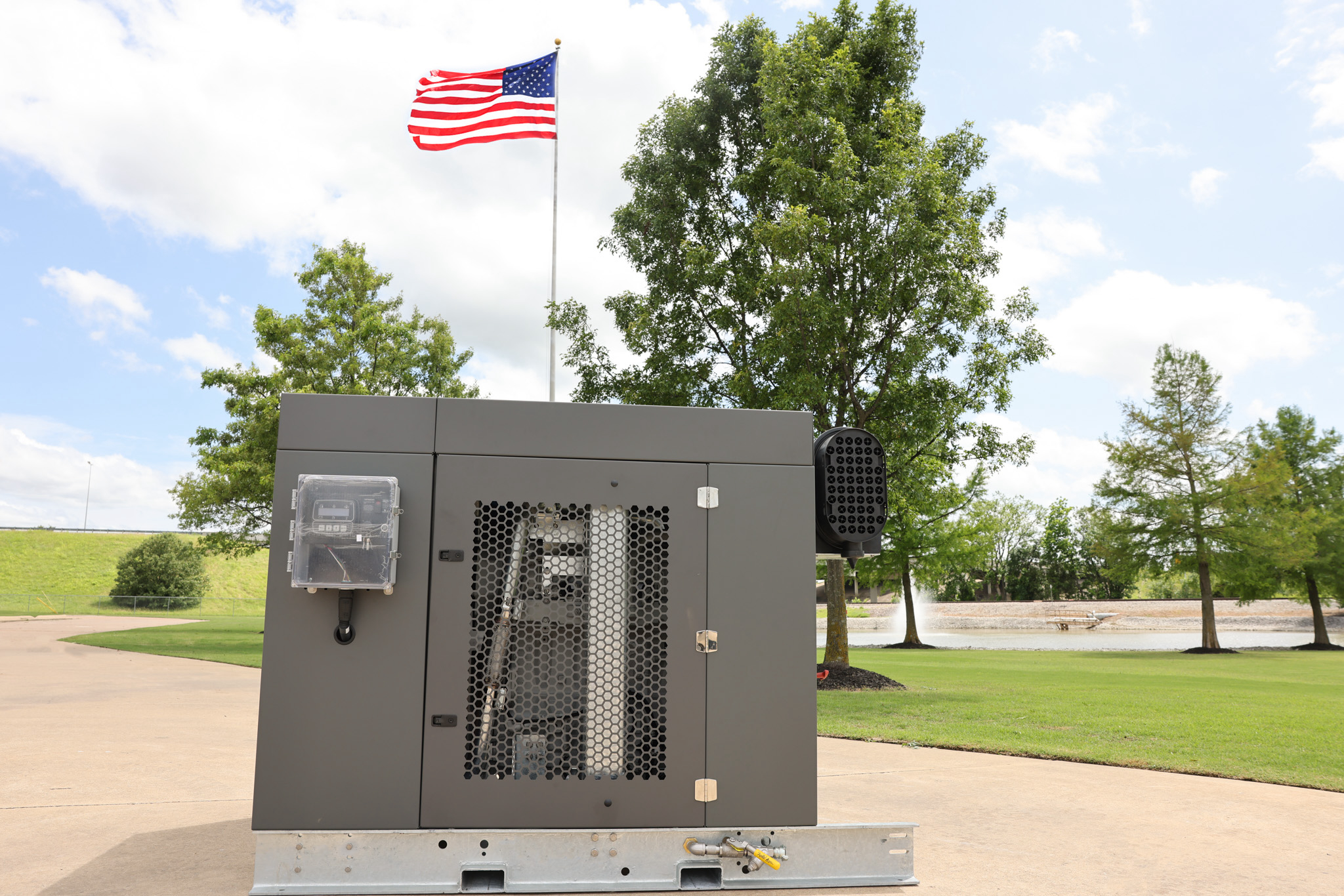

6090HF485 Variable Speed

6090HF485 Variable Speed

  • 6090HF485 Variable Speed

  • 9.0L PowerTech™
  • 280 kW (375 hp)

    Specifications

    Emissions Certifications

    IMO Tier 2
    EPA Tier 3

    General engine data

    Model6090HF485
    Number of cylinders6
    Displacement-- L (cu in)9 (549)
    Bore and Stroke-- mm (in)118.4 x 136.0 (4.66 x 5.35)
    Compression Ratio16.0 : 1
    Engine TypeIn-line, 4-Cycle
    AspirationTurbocharged and air-to-air aftercooled
    Length - mm (in)1208 (47.6)
    Width-- mm (in)630 (24.8)
    Height-- mm (in)1113 (43.8)
    Weight, dry - kg (lb)901 (1986)

    Performance data range

    Intermittent - Rated power/Rated speed280 kW (375 hp) @2200 rpm\
    Intermittent - Peak power280 kW (375 hp) @2200 rpm
    Intermittent - Power bulge0 %
    Intermittent - Peak torque1543 N·m (1138 ft-lb) @1500 rpm
    Intermittent - Torque rise27%

    Features

    • The 4-valve cylinder head, with U-flow head design, provides excellent airflow resulting in greater low-speed torque and better transient response.

    • The HPCR fuel system provides variable common-rail pressure, multiple injections, and higher injection pressures, up to 1600 bar (23,000 psi). It also controls fuel injection timing and provides precise control for the start, duration, and end of the injection.

    • EGR cools and mixes measured amounts of cooled exhaust gas with incoming fresh air to lower peak combustion temperatures, thereby reducing NOx.

    • Varies exhaust pressure based on load and speed to ensure proper EGR flow; greater low-speed torque, quicker transient response, higher peak torque, and best-in-class fuel economy.

    • An efficient method of cooling intake air to help reduce engine emissions while maintaining low-speed torque, transient response time, and peak torque. It enables an engine to meet emissions regulations with better fuel economy and the lowest installed costs.

    • Electronic engine controls monitor critical engine functions, providing warning and/or shutdown to prevent costly engine repairs and eliminate the need for add-on governing components all lowering total installed costs. Snapshot diagnostic data that can be retrieved using commonly available diagnostic service tools.

    • Gear-driven auxillary drives
